System Description

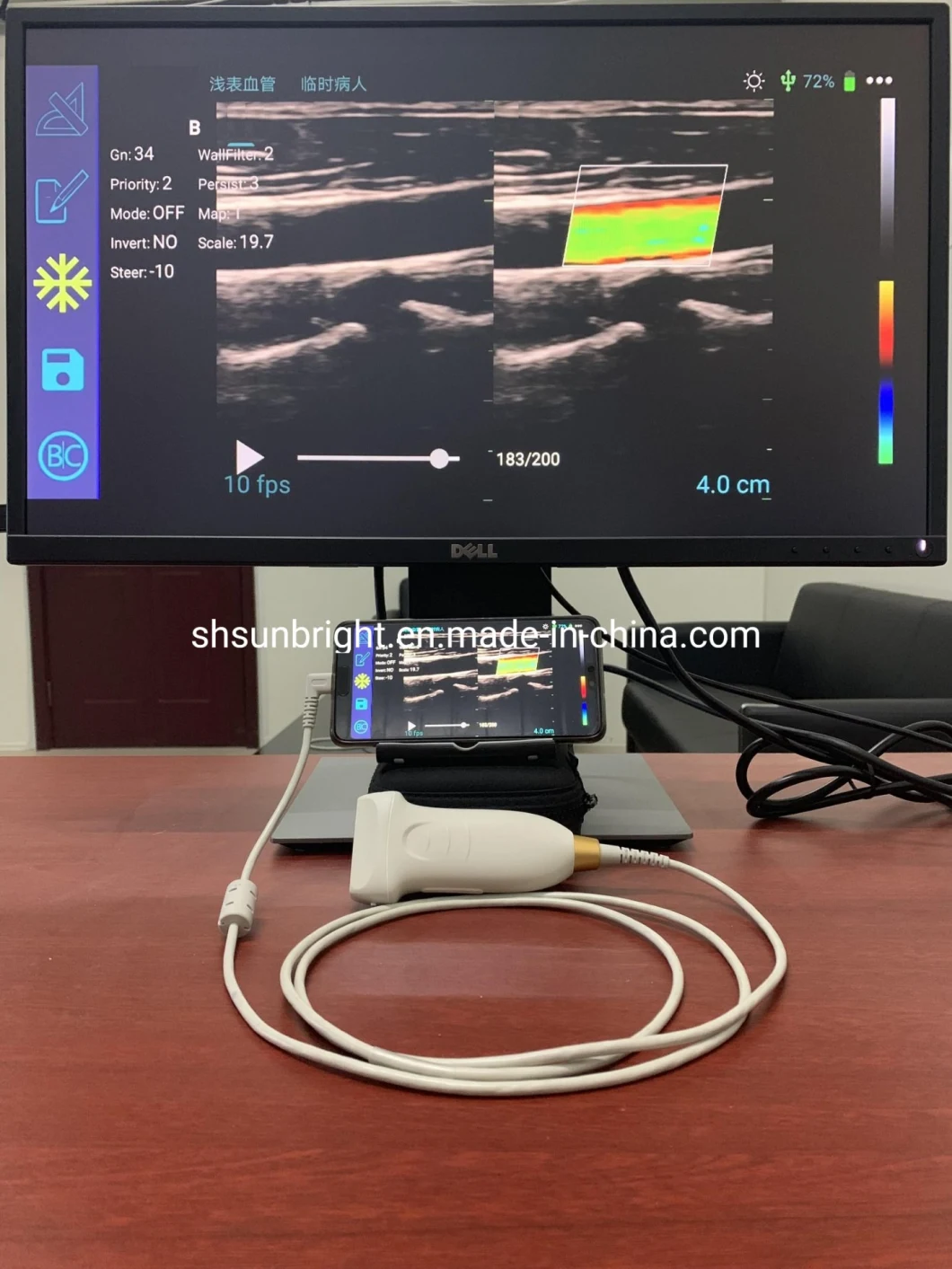

Sun-D2 is an ergonomically designed portable and ease-of-use pocket ultrasound system for multi-specialty uses, such as adults, pregnant women, pediatric patients and neonates. It is intended for use in peripheral vascular, anesthesia, small parts, MSK, athletic medical, abdominal, gynecology, obstetrics, urological, ICU.
 Application
Abdomen / Obstetrics / Gynecology / Urology / Small Parts / Vascular / Pediatrics / Musculoskeletal


Technology
Full field synthetic aperture imaging Tech
Multi-beam formation Tech
Speckle Reduction Tech
Phase-inverse Harmonic Imaging Tech
Duplex Synchronous Display
Directional Power Doppler
Imaging Parameters Preset


General Performance
Digital Beamformer Channels64 channels
Beam-former Frequency Range1~18 MHz

Imaging Performance
Startup Time (Max)Avg. < 10 seconds
Preset Switching TimeAvg. < 1 second

Transducers
ProbeConvex Array ProbeLinear Array Probe
Frequency  Central 3.5 MHz
(2.0MHZ to 5.0MHZ)
Central 7.5 MHz
(5.0MHZ to 10.0MHZ)
Pitch0.78mm0. 5mm
Radius60mmN/A
Elements8080

User Interface
Full touch-screen-based operating principles

IMAGING MODES
B, M, 2B, B/C, B/D, B/C/D, CF+B, PW

B-Mode
Maps8
Gain0~100
TGC6 Sliders
Dynamic Range45~80dB
DepthMax. 24cm
Chroma0~7
Grayscale Levels256
Frame RateMax.15 Hz
Persistence/ Frame Average1~4
Top/Bottom/Left/Right ReverseYes
Speckle ReductionYes
Harmonic imagingYes (linear probe)

Color Mode
Gain0~100
Color Maps1~12
Doppler Steer Angles7 Steps
Wall Filter1~4
Persistence/Frame Average1~5

PW Mode
Gain-20~20
D Linear VelocityL/M/H
Doppler Steer Angles5 Steps
Wall Filtering1~3
Correction Angle80°/-80°
Max PRF10kHz
Baseline Adjustment-3~3

MEASUREMENTS SPECIFICATIONS
Analysis Packages
Basic, Obstetrics, Urology

Basic Measurement
B-mode Distance, Perimeter and Area (ellipse or track-based method), Volume
M-mode Heart Rate, Time, Distance, Speed
PW-mode Heart Rate, Velocity, S/D, PI, RI

Transducer Types & Scanning Methods
Transducer Types
1.Linear array transducer
2.Convex array transducer
3.Phased array transducer(coming soon)

Scanning Methods
1.Electronic linear
2.Electronic convex
3.Electronic sector


Compatible Device:
Android System:
Huawei P10, Honor 9, Mate 9…
Samsung S8, S9, Note8…
LG:V20, G6…

Windows:
OS≥windows 8.1, CPU≥Intel CoreM
