Total Solid Suspended Meter / Turbidity Probe / TSS Analyzer with 4-20mA
Description of Suspended Solids (Sludge Concentration) Sensor
The DG-ZDYG-2087 suspended solids sensor is based on the infrared absorption scattered light method and combined with the application of ISO7027 method, can guarantee the continuous and accurate detection of suspended solids and sludge concentration. Based on ISO7027, infrared double scattering light technology will not be affected by chroma for the measurement of cuspended colids and cludge concentration value. According to the usage environment, self-cleaning function can be equipped with. It assures the stability of data and reliability of performance; with the built-in self-diagnosis function, it can make sure the accurate data be delivered; besides, the installation and calibration is quite simple.
TECHNICAL SPECIFICATIONS of Sensor
|Specifications||Details of sensor|

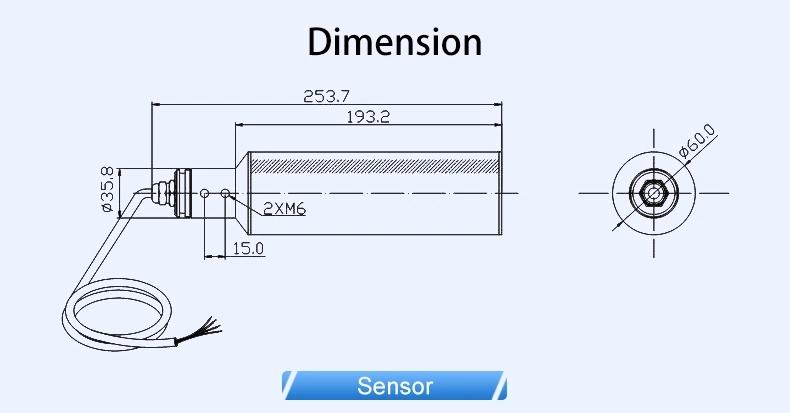

|Size||Diameter 60mm* Length 256mm|
|Main Materials||Main Body:SUS316L (Ordinary Version),Titanium Alloy (Seawater Version)|
Upper and Lower Cover:PVC;Cable: PVC
|Measurement Range||0.01-20000 mg/L,0.01-45000 mg/L ,0.01-120000 mg/L|
|Indication Resolution||Less than ± 5% of the measured value (depending on sludge homogeneity)|
|Calibration||Sample Calibration, Slope Calibration|
|Cable Length||Standard 10-Meter Cable, Max Length: 100 Meters|
|Warranty Period||1 Year|
|High Voltage Baffle||Aviation Connector, Cable Connector|
SUSPENDED SOLIDS METER
The suspended solid meter can be used to display data measured by the sensor, so the user can get the 4-20mA analog output by transmitter's interface configuration and calibration. And it can make relay control, digital communications, and other functions a reality.
The product is widely used in sewage plant, water plant, water station, surface water, farming, industry and other fields. The transmitter diagram is shown as figure 1.
|Material of outside shell||Lower casing:Aluminum with powder covering|
|Storage Temperature||-20 to 70ºC|
|Operation Temperature||-15 to 60ºC|
|Power Supply||AC:AC220V, 50HZ, 5W|
|Output||Two-way analog output 4-20mA, response parameters and corresponding scope can be programmed;|
Note: the maximum load is 500 ohms
|Relay||Three-way relay can be set up, and response parameters and response values can be programmed|
|Display Output||128 * 64 dot matrix LCD with LED backlight, which can be operated under the direct sunlight|
|Digital Communication||MODBUS RS485 communication function, which can transmit real-time measurements|
|Warranty Period||1 year|
- Relay, output and the signal: The transmitter is equipped with three configurable relay switches and two-way analog output.
- Sensor and the sensor module: The transmitter is a single-parameters one, can contain one sensor.
- Transmitter shell: Transmitter shell is of IP65 protection class. For outdoor use, it's strongly recommended to take protective measures to prevent environmental damage.
