Total free and residual chlorine analyzers
DG-CL-2059A Online Water Quality Residual Chlorine Analyzer is a total new industrial residual chlorine analyzer, with high intelligence, sensitivity. It can measure residual chlorine and temperature simultaneously. It is widely used in such industries as thermal power plant, running water, pharmaceutical, drinking water, water purification, industrial pure water, swimming pool disinfection residual chlorine continuous monitoring.
FEATURES
Highly intelligent: DG-CL-2059A Industrial online residual chlorine analyzer adopts industry leading overall design concept of the core components to ensure high-quality, import instruments.
Current output: Adopting isolation technology, strong anti-jamming capability, measurement parameters selectable, high and low alarm settings.
High and low alarm: Hardware isolation, each channel can be arbitrarily chosen measurement parameters, can be preset hysteresis.
Temperature compensation: 0 ~ 50 degree Centigrade Automatic Temperature Compensation
Waterproof and dustproof: Good sealing instrument.
Menu: Fully English display and menu, easy to operation.
Multi-screen display: There are three kinds of instrument display, user-friendly display for the different requirements.
Chlorine calibration: Provide chlorine zero and slope calibration, clear menu design.
TECHNICAL INDEXES
Measuring range | Residual chlorine: 0-20.00mg/L,0~100.00mg/L |
Accuracy | Chlorine: better than ± 1% or ± 0.01mg /L. |
Temperature | Better than ± 0.5 ºC (0 ~ 50.0 ºC) |
Minmum detection | 0.01mg /L |
Repeatability Chlorine | ± 0.01mg / L |
Stability Chlorine | ± 0.01 (mg / L) / 24h |
Current isolated output | 4 ~ 20 mA(load <750 Ω) current output, measurement parameters can be selected independently (FAC, T) |
Output current error | ≤ ± 1% FS |
High and low alarm | AC220V or 24VDC |
Alarm hysteresis | Can be set according to the selected parameters |
Communication | RS485 (optional) |
Working environment | Temperature 0 ~ 60 ºC, Relative humidity <85% It can be convenient to computer monitoring and communication |
Installation type | Opening type, panel mounted. |
Dimensions | 96 (L) × 96 (W) × 118 (D) mm; Hole Size: 92x92mm |
Application
It is widely used in such industries as thermal power plant, running water, pharmaceutical, drinking water, water purification, industrial pure water,
swimming pool disinfection residual chlorine continuous monitoring.

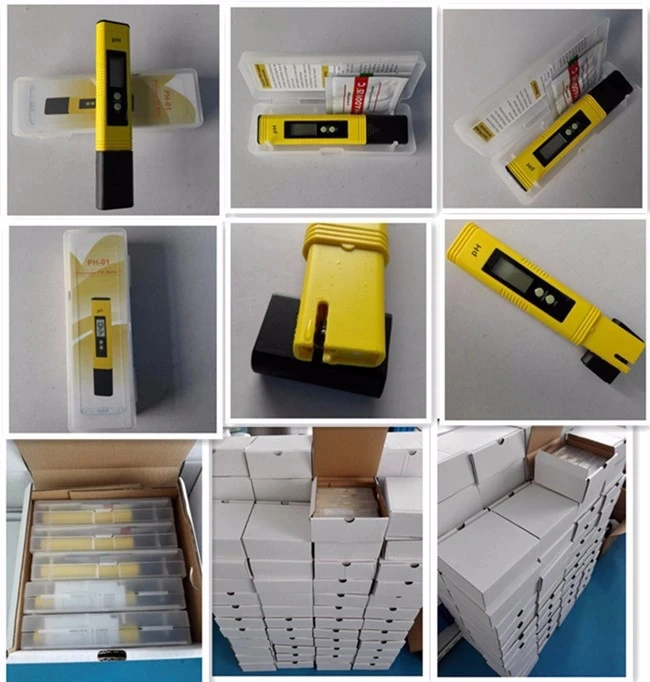

Packing and delivery
