High temperature dissolved oxygen sensor

                         DOG-208FA  Industrial High Temperature Dissolved Oxygen Sensor                               DOG-208FA electrode, which is specially designed to be resista

Featured Products

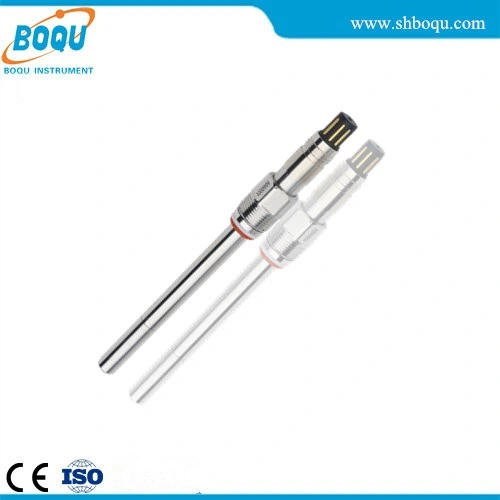

                         DOG-208FA  Industrial High Temperature Dissolved Oxygen Sensor
                               High Temperature Dissolved Oxygen Sensor
DOG-208FA electrode, which is specially designed to be resistant to 130 degrees steam sterilization, the pressure auto-balance high temperature dissolved oxygen electrode, for liquids or gases dissolved oxygen measurement, the electrode is most suitable for small microbial culture reactor dissolved oxygen levels on line. Can also be used for environmental monitoring, wastewater treatment and aquaculture on-line measurement dissolved oxygen levels.

Dissolved oxygen electrode characteristics
1. DOG-208FA high temperature fermentation dissolved oxygen
electrode applicable for Polarographic Principle
2.With imported breathable membrane heads
3.Steel gauze electrode membrane and silicone rubber
4.Endure high temperature, No deformation characteristics
High Temperature Dissolved Oxygen Sensor

Technical indexes
1.Electrode body material: stainless steel
2.Permeable membrane: fluorine plastic,
silicone, stainless steel wire mesh composite membrane.
3.Cathode: platinum wire
4.Anode: silver
5.Electrodes built-in temperature sensor: PT1000
6.The response current in the air: About 60nA
7.The response current in a nitrogen atmosphere: less than
one percent response current of response in air.
8.Electrode response time: about 60 seconds (up 95% response)
9.Electrode Response Stability: a constant oxygen partial pressure
at a constant temperature environment, response current drift less
than 3% per week
Liquid mixing flow to the electrode response: 3% or less (in water at
room temperature)
Electrode Response Temperature Coefficient: 3% (greenhouse)
Insert the electrode diameter: 12 mm, 19 mm, 25 mm optional
Electrode insertion length: 80,150,200,250,300 mm

High Temperature Dissolved Oxygen Sensor
